Manufacturer and supplier of MOBILE BATCHING & MIXING PLANT, TRUSS PAVER for Concrete Road, MINI VIBRATORY ROAD ROLLER, VACUUM DE-WATERING SYSTEM for Industrial Floor and CC Road, VIBRATORY EARTH RAMMER, CONCRETE CUTTING MACHINES for Cutting of Concrete Joint, MINI CRANE for High Rise Building for Lifting Material, BAR BENDER & BAR CUTTER for Tor Steel.

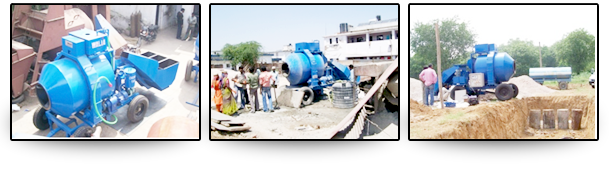

WALIA MOBILE BATCHING PLANT production capacity 12 to 15cum / hr, 3 bin hopper with hydraulic tipping (capacity 1450 kg). Drum powered by 10 h.p Gear Motor. Direct water flow meter, 125 Ltrs stand by water tank. Load cell based weighing system with digital display per batch. All control from one control panel by single operator. Batch wise print out system. Manufacturer as per IS 4925:2004.
| TECHNICAL DATA | |
|---|---|
| SPECIFICATIONS | MODEL NO. PP - 450 (E) 3B |
| CAPACITY | 12 to 15 Cum /Hr |
| Bucket Capacity | 1450 Kg |
| Water Tank | 125 Liters |
| Total Power | 14 H.P. |
1. Batch Wise Tabulated Print Out.
2. Chemical Dosing Unit.

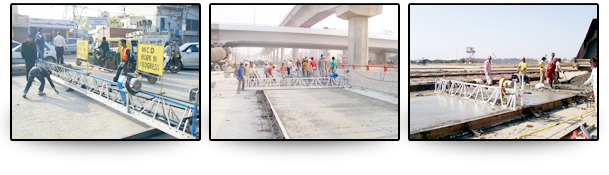

WALIA CONCRETE TRUSS PAVER is designed & manufactured from graded section for laying, leveling and compaction of concrete. Grade of M-10 to M-40 with different slump can be casted with this machine. The Walia Truss Paver is most suitable for paving of concrete from 3 mtrs to 15 mtrs and a thickness of 75mm to 350mm can be easily laid with this machine. Walia Truss Paver easily works on steel and wooden shuttering & there is no special track is required for casting the concrete. Machine is ideally suited CITY ROADS, RIGID PAVEMENTS (PQC), DECK SLABS, WEARING COURSE, RUNWAYS AND HANGERS. 10 Mtr. 12.5 Mtr. 15 Mtr Paving Length Pavers are also available.

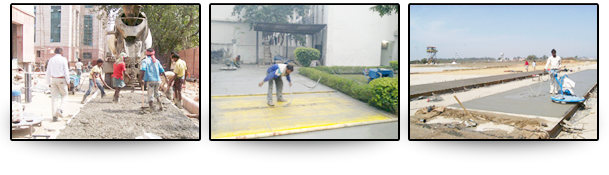

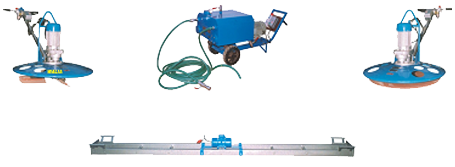

WALIA VACUUM DE-WATERING SYSTEM is designed to eliminate the all ill effects of extra water presence inside the concrete. Through Vacuum treatment, the surplus water is removed from the concrete, which means that the water / cement ratio is drastically reduced after placing. A lowered water / cement ratio automatically leads to noticeable improvements of almost each of concrete properties.
| APPLICATIONS | ADVANTAGES |
| CONCRETE ROADS | 40-70% Higher Compressive Strength |
| INDUSTRIAL FLOORS | 100-150% INCRESE IN THE WEAR RESISTANCE ABERRISON) |
| RAILWAY PLATFORM | 50% REDUCTION IN SHRINKAGE CRACKS |
| STORAGE PLANTS | EARLIER STRENGTH GAIN INCREASE IN FOEST RESISTANCE |
| WEARING COURSE | POROSITY IS REDUCED BY 20% |
| PARKING DECKS | SURFACE PERMEABILITY IS REDUCED TO �0� |
| AIRPORT HANGERS |

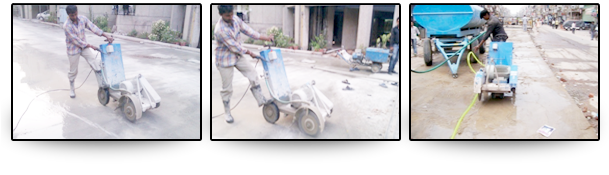

CONCRETE CUTTING MACHINE is ideal equipment for cutting the hard concrete for Dummy Joints, Asphalt Pavement, Asphalt Road & Trench Cutting. Light in weight makes it easy for one operator to handle, gives accurate required depth cut as control mechanism is fitted in the machine, water spray attachment, powered by electric motor or diesel engine.
| MODEL | MAXIMUM | WIDTH OF CUT | PRIME MOVER | POWER RATING | DIAMOND BLADE SIZE |
|---|---|---|---|---|---|
| PP-65 | 50 MM | 2.5 MM | Electric Motor | 5 H.P | 250 MM |
| PP-65 (D) | 50 MM | 2.5 MM | Diesel Engine | 5 H.P | 250 MM |
| PP-110 | 100 MM | 4 & 6 MM | Electric Motor | 7.5 H.P. | 350 MM |
| PP-110 (D) | 100 MM | 4 & 6 MM | Diesel Engine | 8.3 H.P. | 350 MM |
| PP-126 | 150 MM | 4.6 & 8 MM | Electric Motor | 10 H.P. | 450 MM |
| PP-126 (D) | 150 MM | 4.6 & 8 MM | Diesel Engine | 8.3 H.P. | 450 MM |

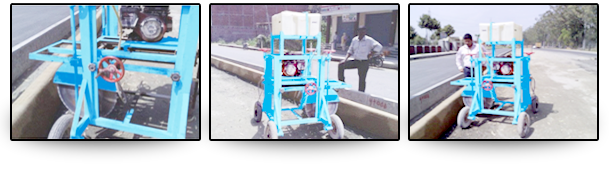

WALIA KERB CUTTER MACHINE Powered by Electric Motor or Petrol Engine Capable of Maximum Depth cut 250 mm, water Spray Attachment, 100 Ltr. Capacity Water tank, Depth Adjustment by Easy Screw with 1 no. of Diamond Blade (size 5 mm x 600 mm), Weight for the Machine 220 Kgs Machine Dimension 1500 x 1450 x 2000 mm.
| MODEL | WEIGHT | MAX DEPTH CUT | WIDTH OF CUT | BLADE DIA | PRIME MOVER | POWER RATING | WATER TANK |
|---|---|---|---|---|---|---|---|
| PP-200 E | 150 KG | 250 MM | 6 MM | 600 MM | Electric Motor | 7.5 H.P. | 100 Ltr. |
| PP-200 | 190 KG | 250 MM | 6 MM | 600 MM | Petrol Engine | 5.0 H.P. | 100 Ltr. |

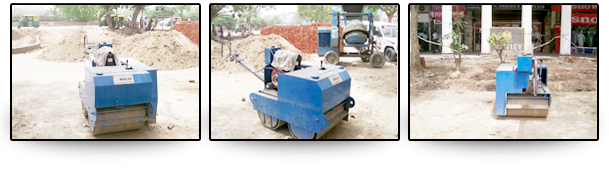

WALIA DOUBLE DRUM VIBRATORY ROAD ROLLER, Walk Behind Type, having Rolling Width of 750mm and Weight 1100kgs. Approximately. These Vibratory Rollers are Double Drum with Vibrations in Both Drums and an all Wheel Drive. These Rollers Employ the Double Vibratory Principle Providing Superior Compaction.
| TECHNICAL DATA | |
|---|---|
| SPECIFICATIONS | WVR 751 |
| Net Weight | 1100 Kgs (Approx) |
| Drum Width | 750 mm |
| Grade Ability (Without Vibration) | 40% |
| Vibratory Drum | 2 Nos. (Front + Rear) |
| Amplitude | 0.5 mm |
| Centrifugal Force | 2 x 1850 Kgs |
| Engine Make | GREAVES |
| Power Rating | 8.3 H.P. |
WALIA PLATE COMPACTORS are self Propelled, Light in Weight and Compact Machines having High Forces, Low Amplitude and High Frequency. Compaction of Non-Cohesive Soil, Subgrade, Maneuvers close to Abutments, Retaining Walls, Ideal for Trenches, Cannel Embankments, Back fill Jobs, Factory Floor, Foundations, Bridge approaches etc.
| MODEL | WEIGHT (Approx) | COMPACTION | PRIME MOVER | POWER | PLATE SIZE | WORKING | DEPTH |
|---|---|---|---|---|---|---|---|
| PP-11 | 95 KG | 1-2 Tons | Diesel / Greaves | 3/1 H.P. | 14 x 24 Inch | 3000 Sqft/h | 6 Inch |
| PP-11 (E) | 85 KG | 1-2 Tons | Electric Motor | 3.0 H.P. | 14 x 24 Inch | 3000 Sqft/h | 6 Inch |
| PP-21 | 205 KG | 4-6 Tons | Diesel / Greaves | 5.0 H.P. | 20 x 32 Inch | 4000 Sqft/h | 12 Inch |
| PP-21 (E) | 175 KG | 4-6 Tons | Electric Motor | 5.0 H.P. | 20 x 32 Inch | 4000 Sqft/h | 12 Inch |
WALIA MINI CRANE is most suitable for lifting building material such as sand, aggregate, concrete, bricks, steel and other construction material. It is widely used in high rise building. No foundation is required for using this crane, self balanced with use in small counter weight by adding sandbags. Boom of 6.5fts with 360 degree movements, extra safety auto mechanical brakes on power failure and auto rewinding system.
| SPECIFICATIONS | PP MINI 300 | PP MINI 500 |
|---|---|---|
| Capacity | 300 Kg | 500 Kg |
| Height | 30-120 Meters | 30-120 Meters |
| Boom Length | 6.5 Ft | 6.5 Ft |
| Rotation | 360° | 360° |
| Prime Mover | 3 HP Crompton | 5 HP Crompton Motor |
| Wire Rope (Motor) | 3 HP Crompton | 5 HP Crompton Motor |
| Wire Rope | 10 mm Usha Martin | 10 mm Usha Martin |
| Bucket Size | L 750 × W 750 × H 342 mm | L 920 × W 920 × H 423 mm |
| Bucket Volume | 120 Litres | 225 Litres |

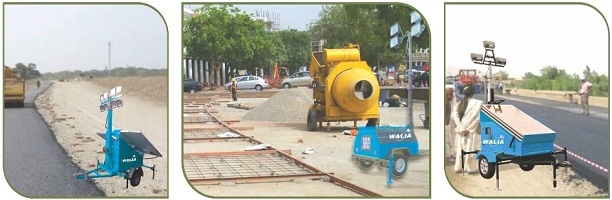

Walia mobile tower are most suitable for construction site, mines, port and defense establishment our machine are compact in size and east to maneuver from one site to other site. LED mobile light towres are design to provide high power, efficincy and performance. best equipment for working sites in night time Walia mobile light towers are powered by diesel engine or solar panels. Manual winch operated mast telescope upto 8000 mm, 360 degree mast rotation, mounted on a heavy duty wheel trailer.
